ALIGN Microbeast BeastX Plus Flybarless Unit

This is the BeastX Microbeast Plus Flybarless Unit. MICROBEAST PLUS is based on the popular MICROBEAST and is leading the next generation of the BEASTX flybarless revolution. MEMS sensors of the latest generation measure the aircraft‘s rotational movement with unprecedented precision, and transmit the data digitally in real time to the control system. These sensors are insensitive to typical vibrations of a model helicopter. The housing made of plastic composite material keeps the weight of MICROBEAST PLUS sensationally low.

MICROBEASTPLUS works with the world’s proven EasySetup of BEASTX. The sophisticated setup can be done quickly everywhere and no expensive programming box or computer is needed, allowing simple and easy setting changes at the flying field.

Further options are available with the optional USB2SYS in­ter­face and the StudioX software package. MICROBEAST PLUS can be kept up to date by using the update functionality, allowing advanced pilots to customize the unit specifically to their needs. StudioX for Windows & Mac is available for download at www.beastx.com.

Features:

• Servo center pulses:
• Swashplate: 1520µs
• Rudder: 1520µs, 960µs, 760µs
• Servo pulse rates:
• Swashplate: 50 – 200Hz
• Rudder: 50 – 560Hz
• Swashplate mixing:
• mCCPM, eCCPM: 90, 120, 135, 140
• Swash phasing (by using StudioX)
• Input signals:
• Single channels
• PPM serial pulse
• SRXL (JR XBus, SUMD, M-Link…)
• Futaba S.Bus/S.Bus2
• Spektrum Remote Receiver (DSM2/DSMX – with Spektrum Remote Receiver adapter)

Specifications:
Input Voltage: 3.5V-8.5V DC (operation with 2 cell LiPo is possible)
Processor: 32 Bit ARM
Sensor: 6-Axis MEMS (Gyro+Accelerometer)
Dimensions: 36x25x14mm
Weight (w/o wires): 11g

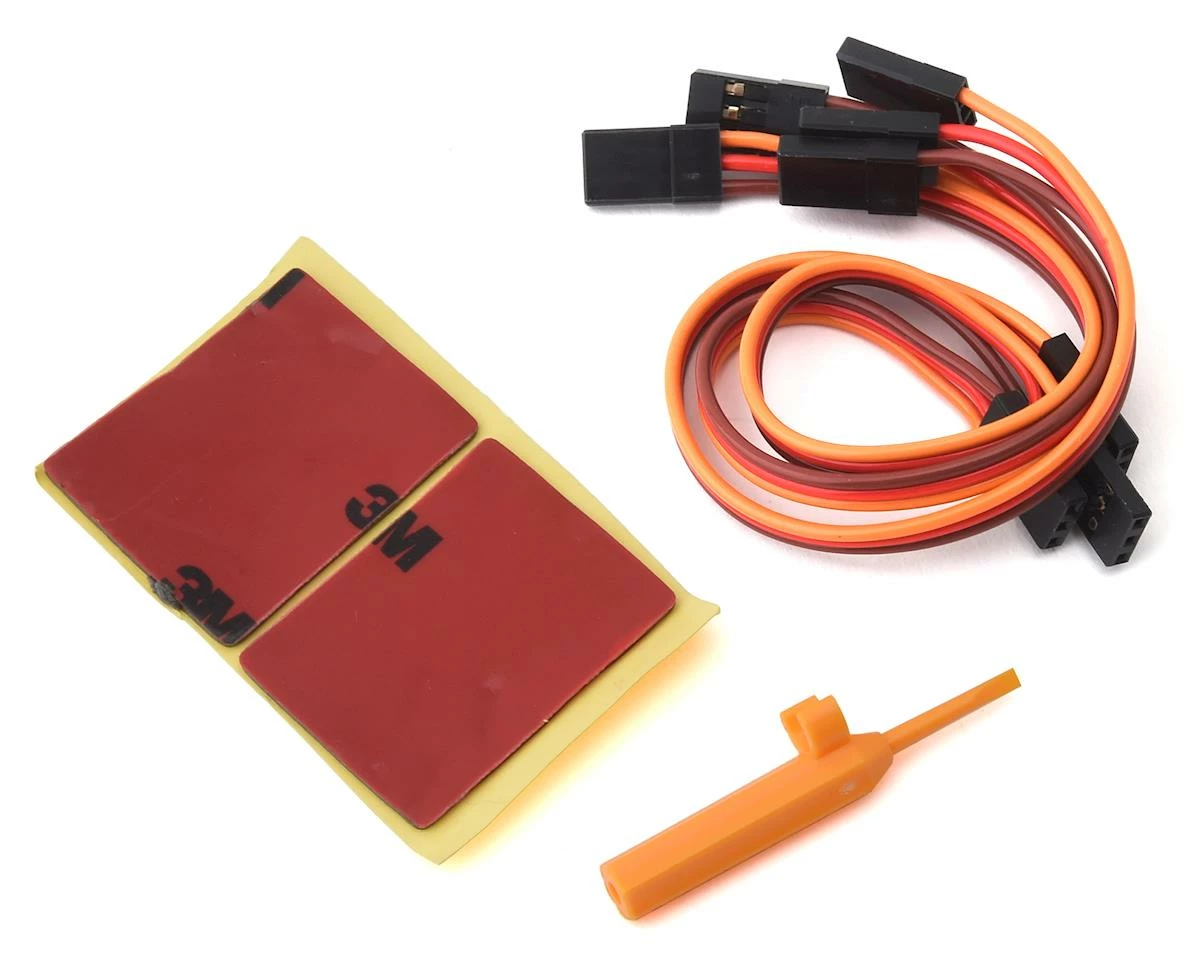

Includes:

• MICROBEAST PLUS
• Receiver connection cables
• 3M adhesive pads
• Adjustment tool
• Printed instruction manual

This product was added to our catalog on September 12, 2016
