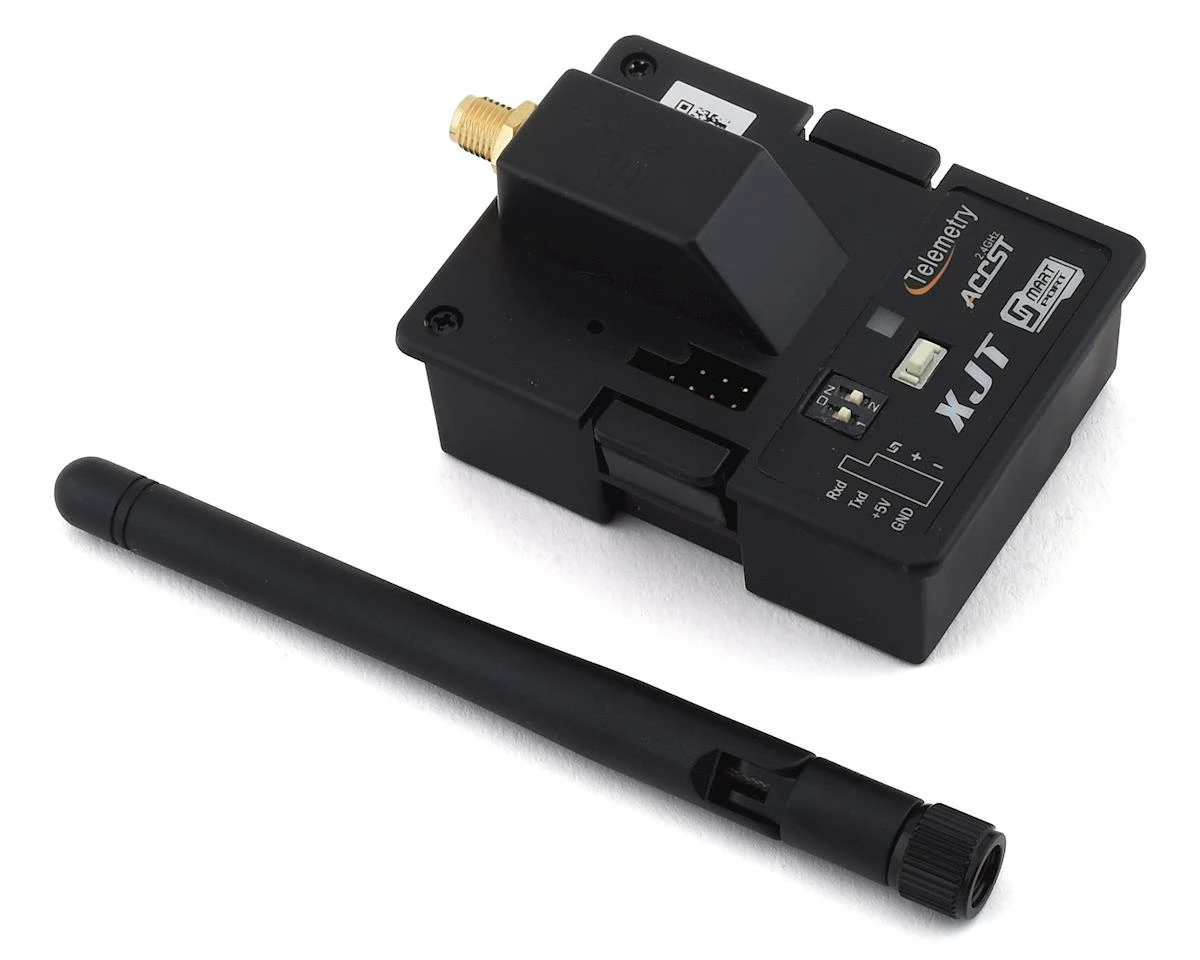

FrSky XJT Transmitter Module

The FrSky XJT telemetry transmitter module is compatible with the JR style module bays. This allows for non FrSky radios to be used with certain compatible FrSky receivers (listed below).

The latest upgrade to the FrSky Telemetry Radio System now features up to 16 channels and the new Smart Port for duplex communications with X series receivers. (Only certain transmitters are capable of sending 16 channels to the XJT.)

The module is compatible with both the V8, D, LR and X Series (telemetry) receivers from FrSky.

Add the XJT to the back of your FrSky Taranis transmitter for 32 channel in total!

• Advanced Continuous Channel Shifting Technology (ACCST SYSTEM) achieves highly reliable link in interference rich environments.
• Smart Port – Full Duplex communication
• Easy to bind and instant link-up
• Excellent reboot times
• All channels failsafe
• Quick response
• Very smooth servo movement
• Alarm on events of receiver (low battery voltages, poor reception, etc.)
• Error-free link, by using 48bits CRC algorithm
• Firmware upgradable

V8 Series: (Non-Telemetry receivers)

V8FR-II, V8R7-II, V8R4-II, VD5M

D Series: (Telemetry receivers)

D8R, D8R-II, D8R-II Plus, D8RSP, D8R-XP, D6FR, D4FR, D4R-II, etc.

X Series: (Telemetry receivers)

X8R, X6R, X4R, etc.

LR Series: (Long Range receivers)

L9R

JR: 347, 388, 783, U8, PCM10, PCM10S, PCM10SX, PCM10IIS, 8103, J9303, MX-22, MX-24S, PX, 9XII, Eurgle 9X, Turnigy 9X and more.

Operating Voltage Range: 6.0V-15.0V

Operating Current: 140mA (@6V), 80mA (@12V)

Output Power: ? 100mW
