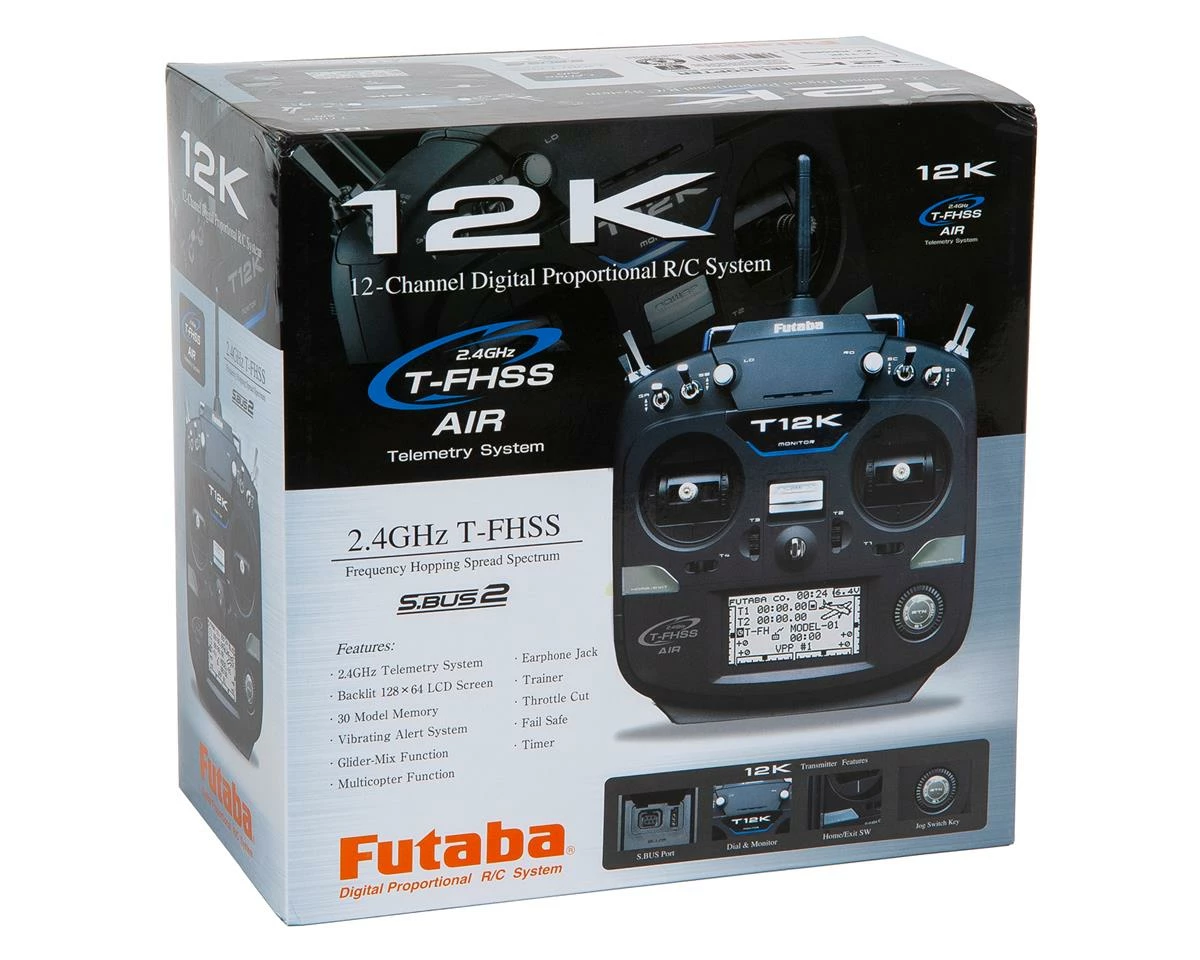

FUTABA 12K 2.4GHz T-FHSS 14 Channel Radio System (FPV) W/R3001SB Receiver

The Futaba 12K 2.4GHz T-FHSS 14 Channel Radio System combines first-class performance with incredible versatility to create a system that’s easy to operate, yet feature-packed! This package has been developed specifically for FPV drones, however, it can be programmed to operate helicopters, airplanes, or other aircraft as well.

Equipped with the rock-solid Futaba S-FHSS and T-FHSS protocols, the 12K is compatible with almost a dozen different Futaba receivers to suit modelers’ needs. The 12K can transmit and receive telemetry data via the T-FHSS protocol. Simply install Futaba telemetry sensors (sold separately) to monitor flight data, receive alerts while in flight and more. These sensors allow pilots to keep track of battery voltage, altitude, speed and other key flight functions.

In addition to telemetry, the 12K can be used with S.Bus2 gear to add multiple servos, gyros and more to set-ups with fewer cables. Pilots with non-telemetry set-ups can take advantage of the interference-free S-FHSS protocol. A large, backlit LCD screen, expandable 30-model memory, a 6V 1800mAh NiMH battery and charger are just a few more of the features the 12K has to offer.

Features:

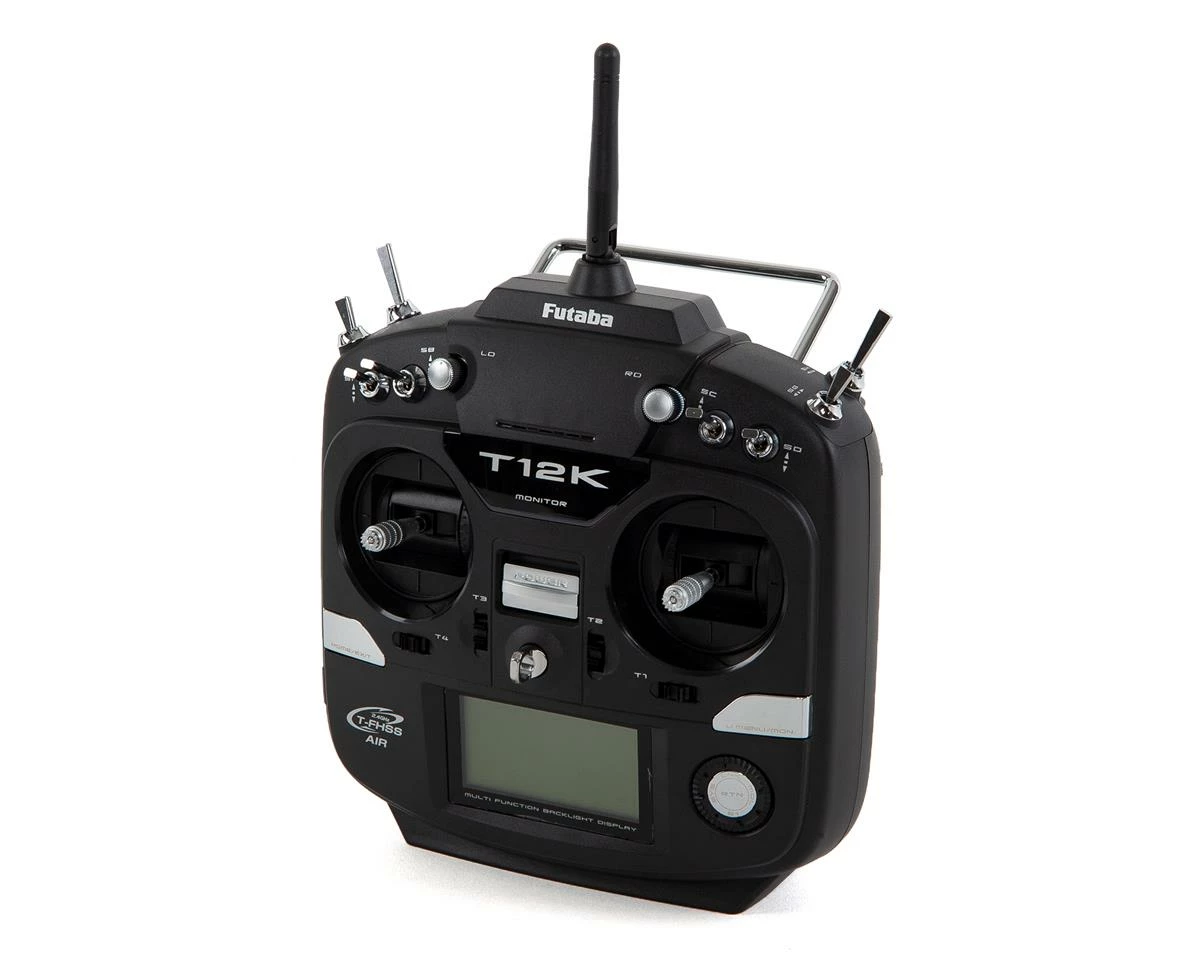

• Transmitter:

• Channels: 14 (12 proportional, 2 switched)
• Compatible with T-FHSS and S-FHSS protocols
• Six 3-position switches, two 2-position switches, two slider levers, two rotary dials, four digital trims and two push buttons for quick, easy access
• Headphone plug, trainer port and S.Bus plug-in
• S.Bus2 system allows multiple servos, gyros and telemetry sensors with a minimum number of cables
• Model types: six types of main wing with three tail types for airplanes, six swash types for helis and multi-rotor functions
• Improved stick feel with adjustable lengths and tension
• Dual rates/exponential

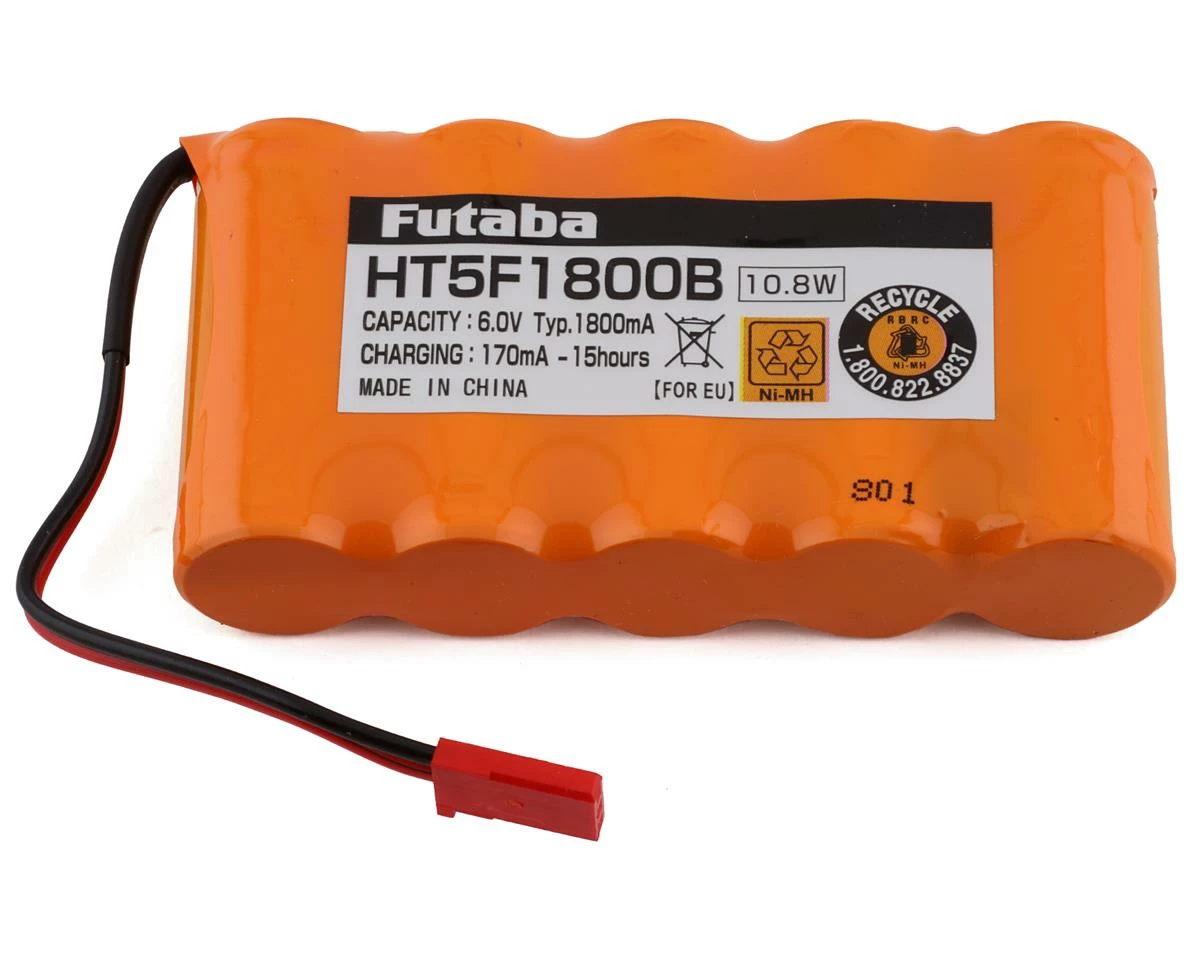

• Included 6V 1800mAh NiMH battery and charger
• Large, backlit LCD screen with adjustable contrast for easier reading. Push/dial operation simplifies set-up
• Micro memory card slot for storing model information and free system updates. (SD-32MB to 2GB; SDHC-4GB to 32GB, not included)
• Vibration feature alerts pilots to various alarms and timers, in addition to sound
• 10-character model naming
• Expandable 30-model memory
• 5 flight conditions (Helicopter and Glider model selections)
• 5 customizable programmable mixes
• Servo test and servo position display
• Fuel mixing
• Stick calibration
• Servo speed
• Logic switching
• Smooth throttle movement

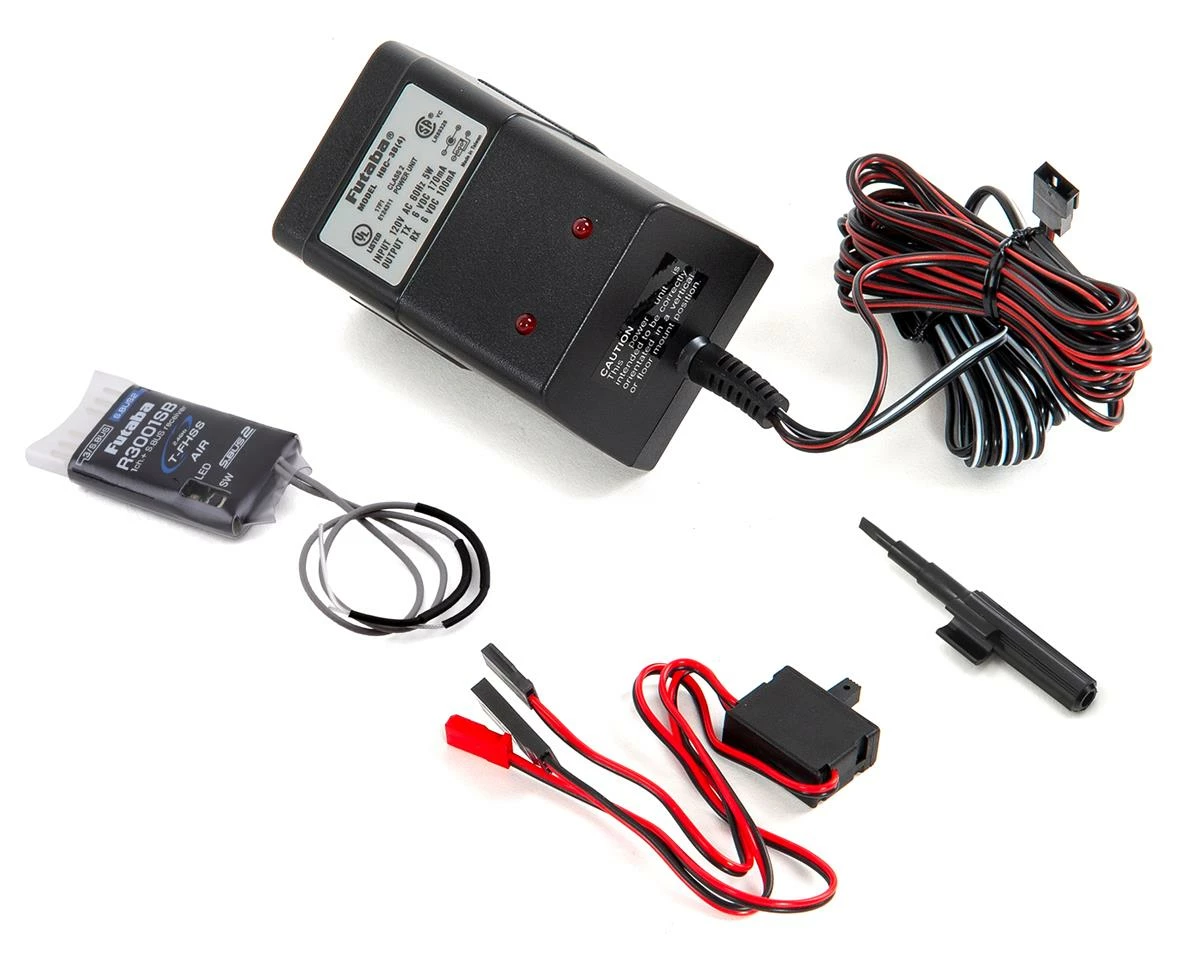

• R3001SB Receiver:
• Standard PWM (CH3)/S.Bus port and an S.Bus-2 port for telemetry sensors and other devices requiring S.Bus setup such as specific gyros and servos
• Channel Mode Settings; Mode A Mode B
• 3/S.Bus CH3 S.Bus
• Dual antenna diversity
• High voltage
• Battery failsafe
