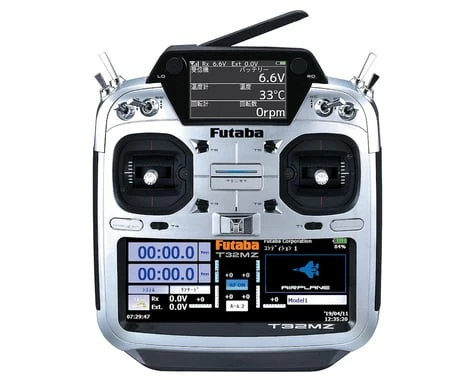

FUTABA 32MZ 2.4GHz FASSTest 18 Channel Radio System (Airplane) W/R7108SB Receiver

Original price was: $363.00.Current price is: $98.99.

SKU: 1060377 Categories: Electronics, Electronics, Helicopters, Transmitters Tag: Futaba

Protect Your Information, Shop with Safe Payments
Made of environmentally friendly materials
No Compromise on Quality
Product guarantee 100% satisfaction

Description
Reviews (0)

The Futaba 32MZ is an incredible transmitter that houses all the technology and features that Futaba is known for, and then some. Built on the trusted FASSTest 2.4GHz system, users will easily link to previous models. BiDirectional communication allows pilots to receive telemetry data from the RX to their TX. Thanks to the secondary top screen, configuring and reading telemetry information has never been easier.

Offered in both “Airplane” and “Helicopter” configurations, the differences between both are minimal. Airplane version is equipped with a ratcheting throttle stick, and helicopter is equipped with a smooth throttle stick.

Features at a Glance:

Channel Expansion (Multiprop Function)
S.Bus2 System Programming
Windows Compact 7 Embedded
Color LCD Main Display
Color LCD Sub Display
Music Playback
Voice Recording
SD Card Compatible
Dual Ball Bearing Gimbals

Channel Expansion

The multiprop function can be used by using the separately sold multiprop decoder MPDX-1. The multiprop function is a function that divides one channel into eight channels and extends the number of channels. Up to 2 x MPDX-1 can be used, and up to 32 channels can be expanded as follows:

Linear channel – 14 channels (2 channels are used by multiprop function)
ON/OFF channel – 2 channels
Multiprop channel – 16 channels

Multiprop channels have the following differences from normal linear channels:

The resolution of the multiprop channel is lower than that of the linear channel.
Operating multiple multiprop channels simultaneously may reduce the operation response of the multiprop channel.
Multiprop channels can not use the mixing function.

S.Bus2 System
Futaba’s S.Bus2 System allows multiple servos, gyros, and telemetry sensors to be installed and programmed with minimal cables and hassle.

Windows Compact 7
T32MZ utilizes Microsoft Windows Embedded Compact 7, which offers outstanding dependability and valuable resources for many programming possibilities.

Color Displays
The main display utilizes a HVGA (640×240 pixel) full color backlit LCD touch screen. The screen is manufactured with a transflective construction which enables both indoor and outdoor visibility. Additionally the sub display uses a color LCD as well. This allows pilots to easily read telemetry data separate from the main display. Just like the main, the sub display uses a reflective LCD that provides good visibility for all lighting conditions.

High Quality Gimbals
Each axis is supported by dual ball bearings, ensuring buttery smooth operation and feedback. Additionally the gimbals are paired with magnetic potentiometers which will provided a higher precision and longer lifespan.

Specifications:
Frequency: 2.4GHz
Operation System: 18 Channel, FASSTest/FASST/T-FHSS/S-FHSS
Battery: 3.8V L1F6600B 1s 3.8V LiPo Battery (6600mAh)
Power Output: 100mW EIRP
Weight (w/Battery): 2.48lbs | 1126g

What’s in the Box:
