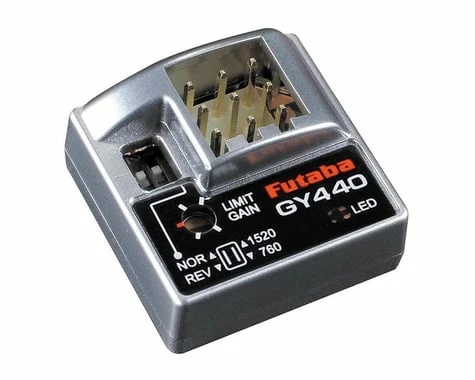

FUTABA GY440 Tail Rotor Heading Hold Gyro

This is the Futaba GYA440 Single Servo Rate Gyro for Airplanes. COMMENTS: To install, plug the servo into port 3. Port 2 can be used for remote gain by connecting it to the desired channel on the receiver. If not using remote gain, gyro sensitivity can be adjusted using the limit trim. Port 1 is used for the servo channel from the receiver when not using S.BUS input, otherwise it is connected to the S.BUS network via the receiver or another S.BUS device. When not using S.BUS, the Elevator/Rudder switch has no effect. When using S.BUS, the Elevator/Rudder switch determines the channel this gyro will accept input from. Putting the switch in the elevator position will set input to channel 2. Putting the switch to the rudder position will set input to channel 4. When using with S.BUS, channel assignments for this gyro are fixed: Elevator: CH 2 Rudder: CH 4 2nd elevator: CH 9 Gyro sensitivity, elevator: CH 7 rudder: CH 8 jxs 10/31/16 ir/jxs

This product was added to our catalog on January 23, 2020
