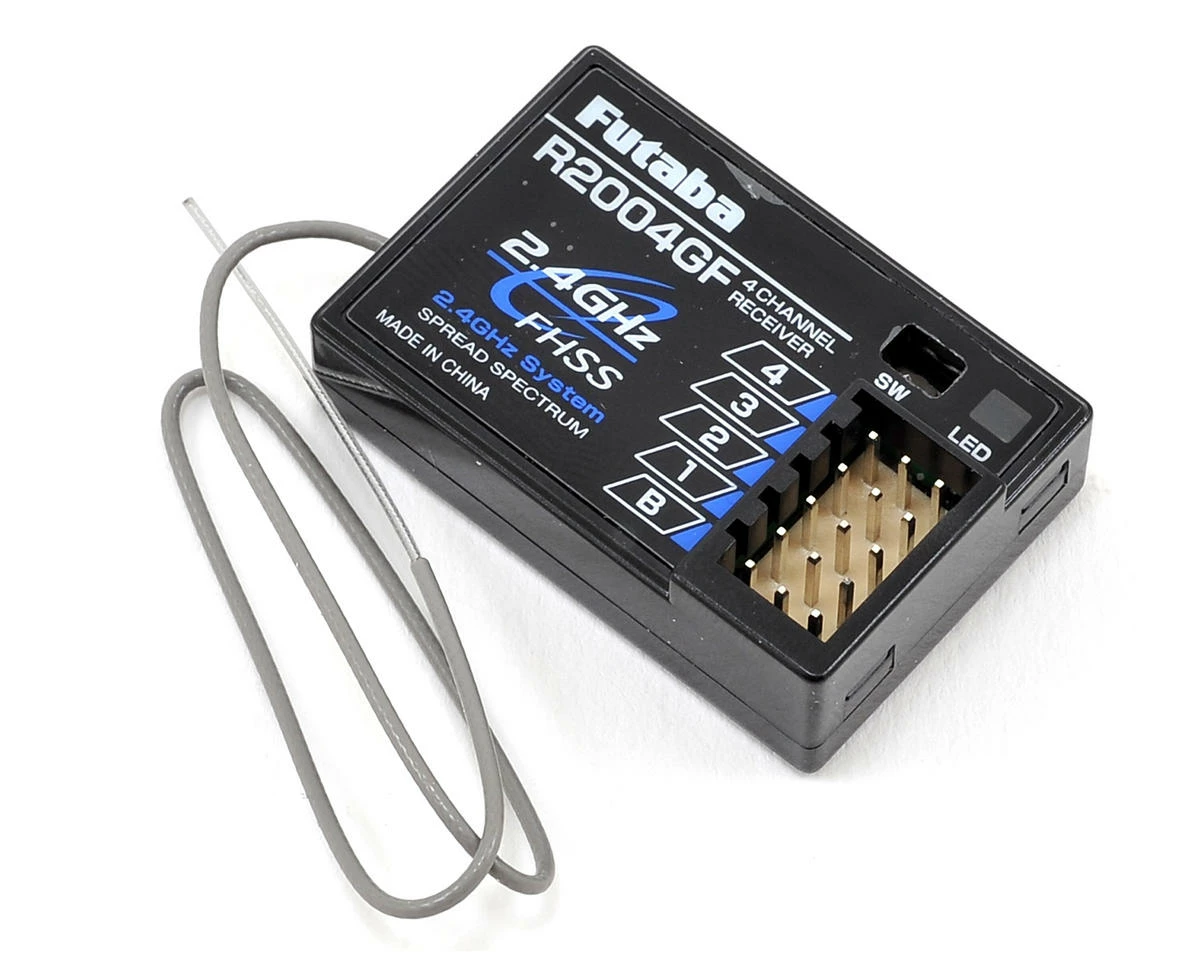

FUTABA R2004GF FHSS 4-Channel 2.4GHz Receiver

The Futaba R2004GF 4-Channel 2.4GHz FHSS Receiver is compatible with Futaba FHSS transmitters. The R2004GF receiver features a flexible coaxial antenna that can be easily positioned inside the model for optimum reception. The R2004GF receiver is compatible only with electronics created specifically for 2.4GHz FHSS systems.

NOTE: This receiver is NOT compatible with 2.4GHz FASST, FASSTest, or S-FHSS systems. Will work with T-FHSS transmitters, but the transmitter mode will need to be changed from T-FHSS to FHSS mode.

Features:

• For use with Futaba 2.4GHz FHSS transmitters
• Flexible coaxial antenna that’s easy to position inside a model for ideal reception
• Does not have battery failsafe function

Specifications:
Power Requirement: 4.8V or 7.4V shared with servos
Current Drain: 30mA at no signal
Size: 1.54 x 1.02 x 0.39″ (39 x 26 x 10mm)
Weight: 0.28oz (8g)
Number of Ports: 5
PWM Output: 4
SBUS Ports: 0
SBUS2 Ports: 0
FASST: No
Telemetry: No
S-FHSS: FHSS
High Speed: Yes
High Voltage: Yes
Connector: J (STND)
Range: Park Flyer

Includes:

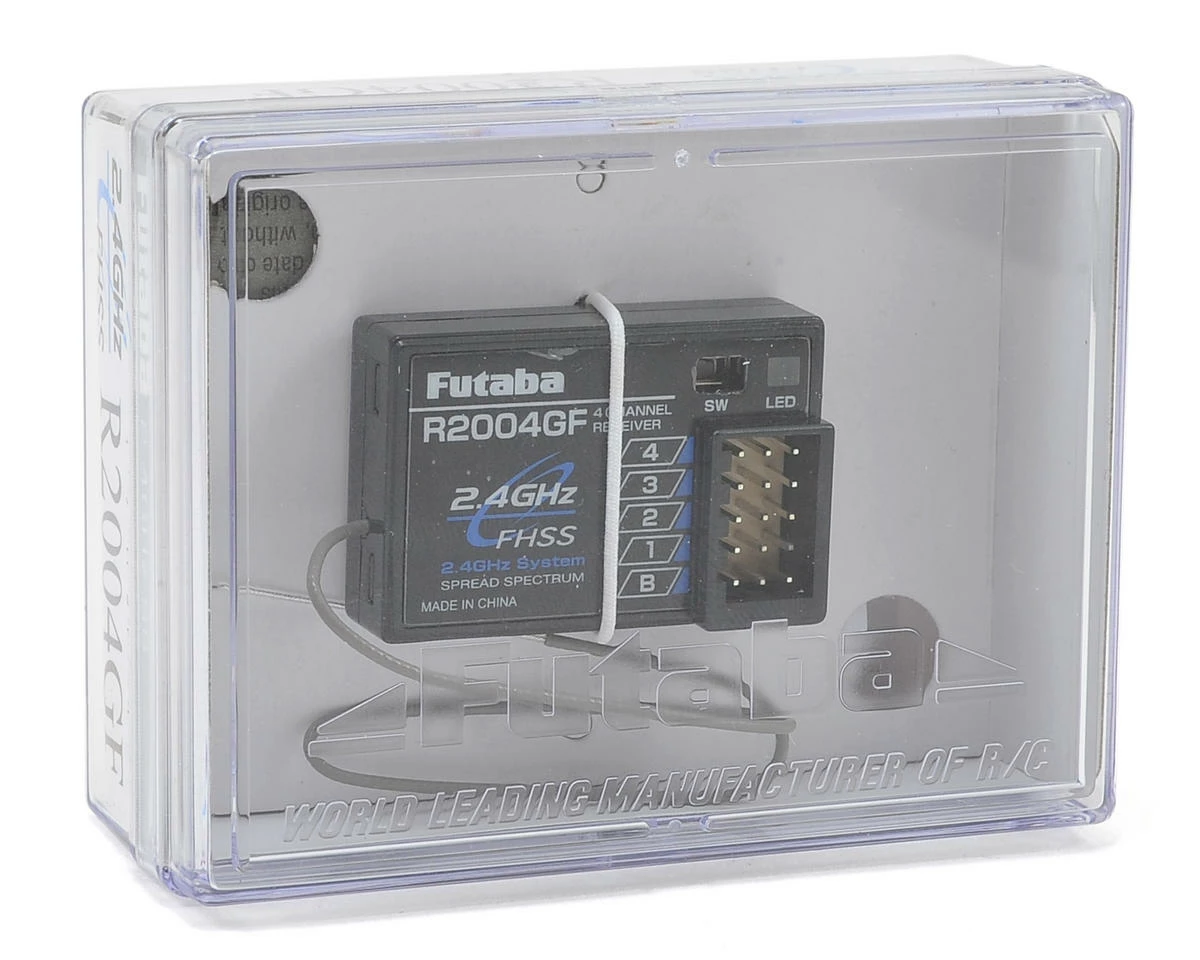

• Futaba R2004GF 2.4GHz FHSS Sport 4-Channel Receiver
• instruction sheet

NOTE: This receiver is NOT compatible with 2.4GHz FASST, FASSTest, or S-FHSS systems. Will work with T-FHSS transmitters, but the transmitter mode will need to be changed from T-FHSS to FHSS mode.

This product was added to our catalog on April 2, 2014
