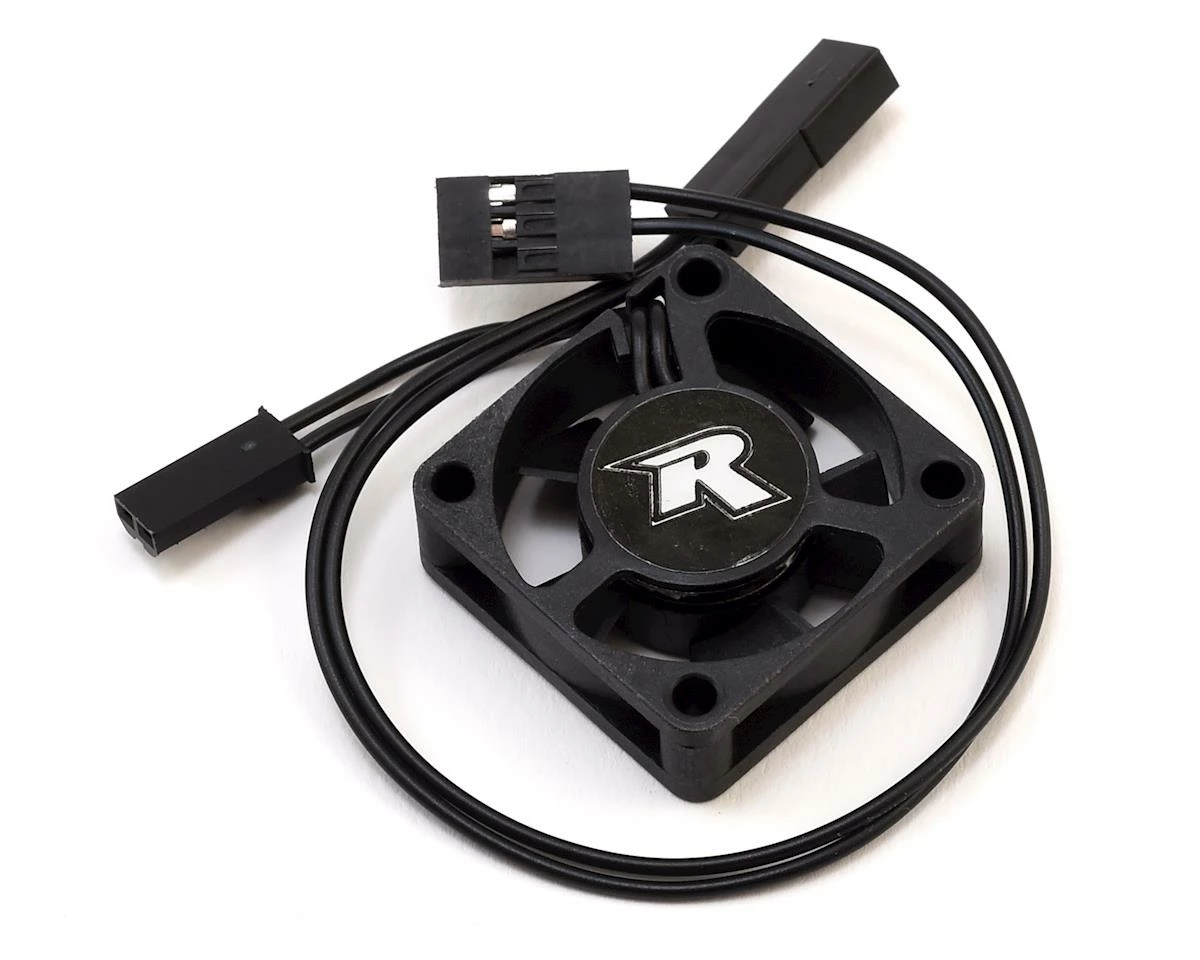

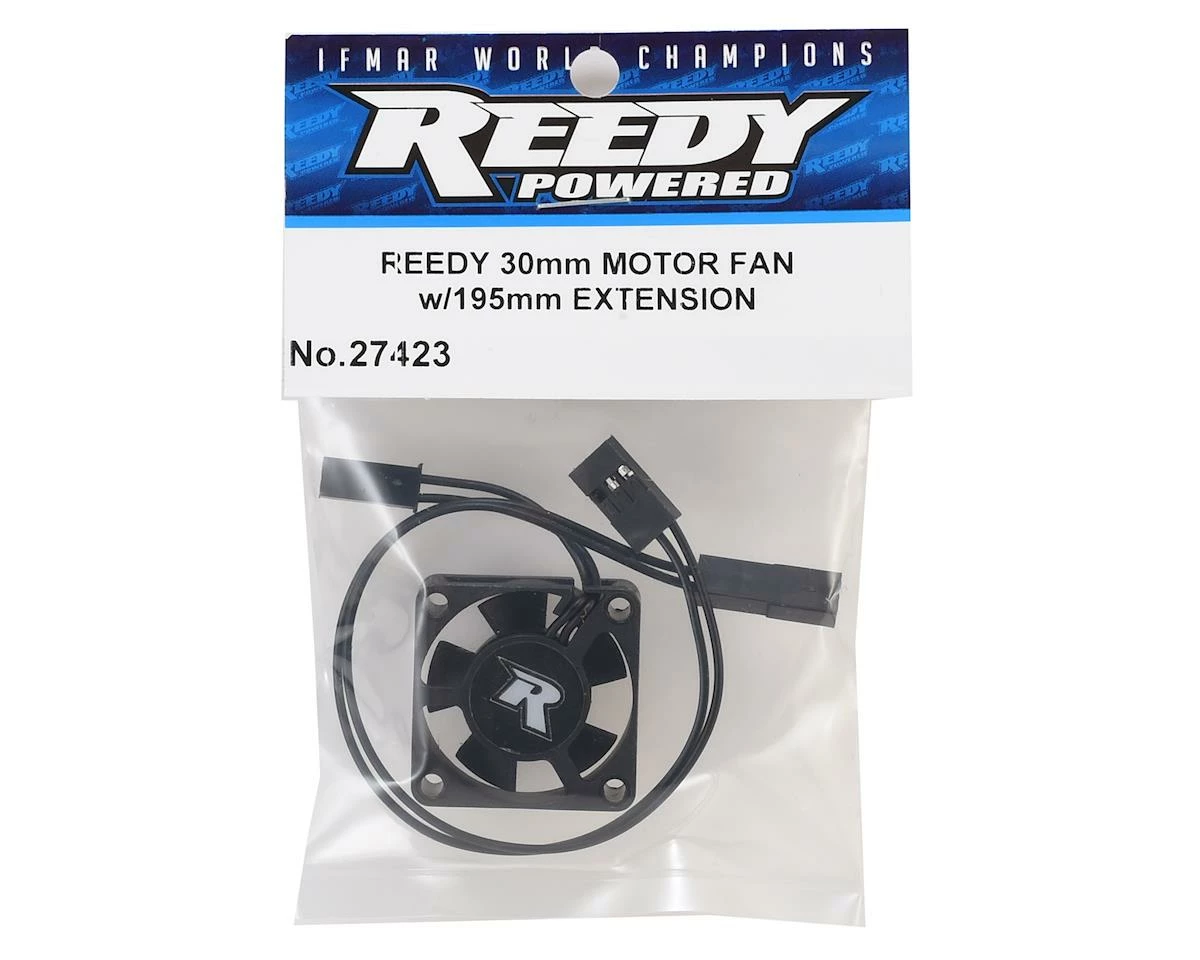

Reedy 30mm HV Motor Cooling Fan W/195mm Extension

Lowering a motor’s operating temperature improves efficiency and power output while extending its life. Reedy’s HV 30mm Motor Fan comes with a handy 195mm extension. It is simple to install by plugging directly into your receiver where it operates off BEC voltage.

Because the fan has HV capability, it can also be soldered directly to the ESC battery terminals to achieve 24000 RPM and maximum cooling.

Installing in the vehicle is as easy as double-sided tape or fitting it to your favorite fan mount or heat sink.

Specifications:
Input Voltage: 6.0 – 8.4
RPM: 24000 @8.4V
Dimensions: 30x30x10mm
Weight: 8g

This product was added to our catalog on June 15, 2018
