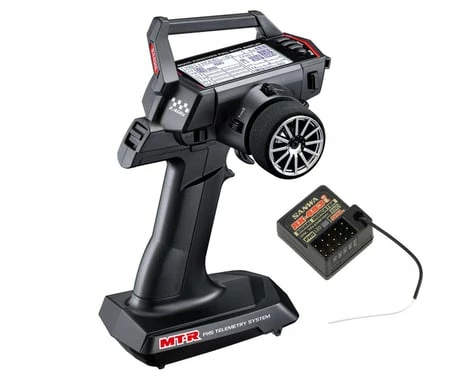

Sanwa/Airtronics MT-R FH5 4-Channel 2.4GHz Radio System W/RX-493i Receiver

• White led back light
• Large full-dot lcd monitor(128x64dot)
• St th tension adjustment
• Adjustable trigger
• Telemetry function
• Dual rate
• Servo speed
• Servo reverse
• Trim/sub trim
• Curve(exponential / adjustable rate control)
• Fail safe(radio waves / battery)
• Epa
• Offset
• Bind
• Base
• Function
• Th type(70:30/50:50)
• Anti-lock brake
• Model name(10 letters)
• Model memory(20 models)
• Model(select/clear/copy)
• Timer(lap / interval / down)
• Logger
• Alert setting
• Telemetry setting
• Key assign(sw / trim)
• Buzzer(scale / volume changeable)
• Transmitter battery alarm
• Lcd contrast
• Volume adjustment
• Setup wizard
• Rf mode setting(fh5)
• Response mode (nor/shr/ssr/sur)
• Direct model select
• Aux1(select the operation type of 3ch)
• Aux2(select the operation type of 4ch)
• Aux type setting:
• Code aux (compatible with super vortex gen2 and gen2 pro & pgs servo
• Series & sgs-02 menu)
• Step aux (step 1 to 100)
• Point aux (2 to 6 point)
• 4ws mixing (front/rear/normal/reverse
• Moa mixing(front-wheel-drive/4wd/rear-wheel-drive)
• *drive rate is variable.
• Aux mixing (st mixing, th mixing)

NOTE: SSL (Sanwa Synchronized Link) System

• SANWA SSL SYSTEM
• When used with compatible receivers with Super Vortex Series, SV-Plus Series, PGS Servo Series, and SGS-02, etc. by Transmitter is available through SSL functions while driving.
• Since the setting can be done without the stop of car, the detailed adjustment in accordance with Race conditions is available without interruption of Intervals and the change of machine conditions.
• RESPONSE OF TELEMETRY SYSTEM
• It is often said that telemetry system reduce response speed. However, SANWA Original Data Processing and Algorithm Design makes Telemetry possible without response speed reduction.
• Sanwa’s Excellent Telemetry System has no response speed reduction.
• RESPONSE MODE
• Please do not use Analog Servo for SHR mode, SSR mode or SUR mode. If analog servo is used for SHR mode or SSR mode, the servo will be broken and will not work.
• Digital servo (PGS, SRG, Digital ERG, SDX series) can be used both for NOR mode and SHR mode.
• SUR mode can be used only by PGS series servo
• In SHR or SSR mode, BL-FORCE, BL-SPORT, F3300, SBL-02 and SBL-03CR do not work.
• Please use NOR mode for the above ESC.
