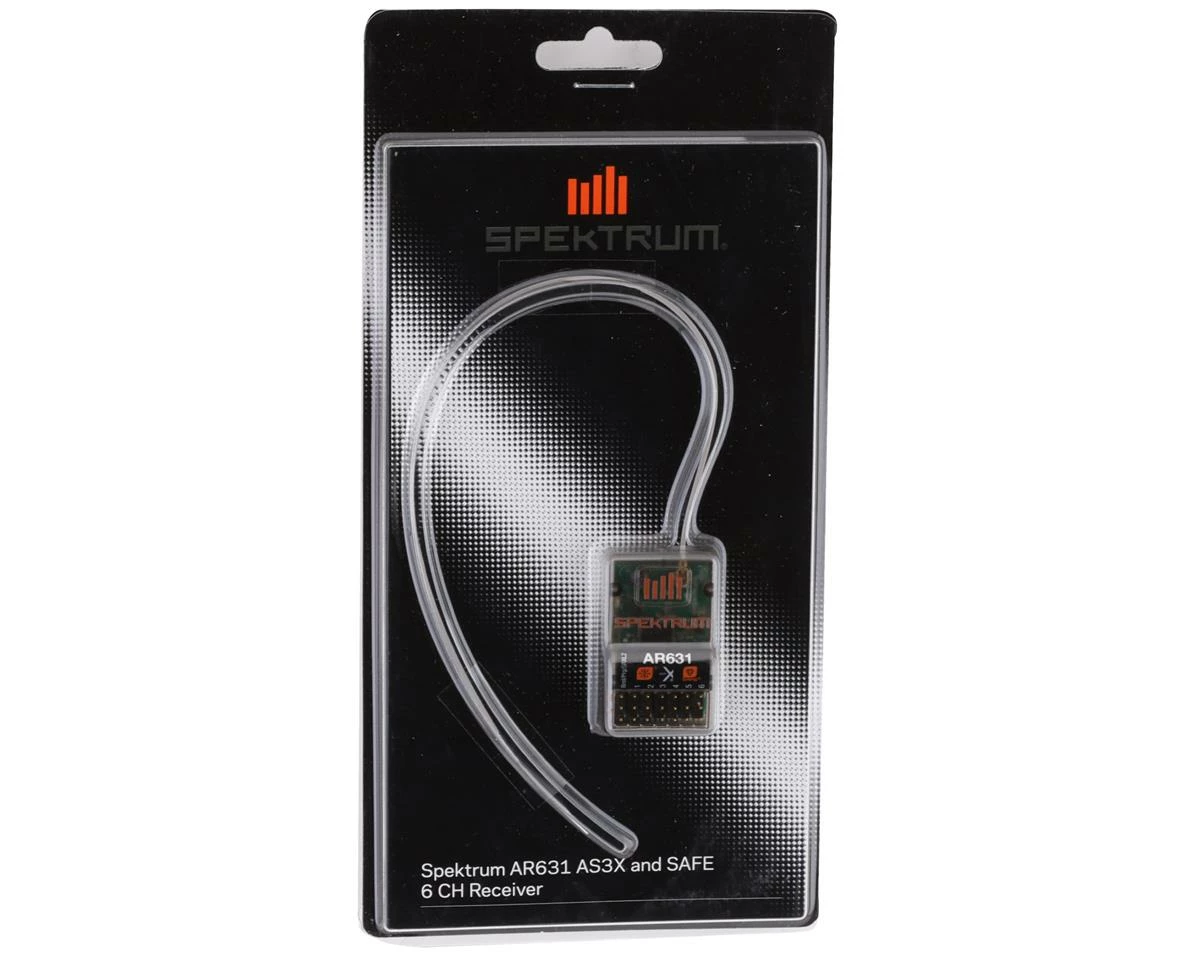

Spektrum RC AR631 6-Channel AS3X & SAFE Receiver

The Spektrum AR631 AS3X Telemetry Receiver is a DSM2 and DSMX capable receiver. Its compact footprint is designed to fit in a wide range of aircraft models including park flyers and larger sport models. The AR631 is a full range 6-channel receiver with built in AS3X and SAFE stabilization, which counters the effects of wind, turbulence and torque using 3-axis MEMS gyro and exclusive flight control software tuned by expert RC pilots. There is no delay in control response or limits on control throws. You’ll simply feel like you’re flying an expertly tuned model that does exactly what you want.

Features:

• 230mm Antenna for more versatile installation options
• Built in AS3X Stabilization System with SAFE flight envelope protection
• AS3X and SAFE set up through forward programming directly from your Spektrum transmitter
• Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
• Streamlined, end-pin design in a lightweight hard-case
• Bind button allows for easy binding and eliminates the need for bind plug
• DSMX protocol receiver with DSM2 backwards compatibility
• Fly-by range telemetry support
• Standard servo connectors

AS3X® Technology
Exclusive Spektrum™ AS3X® technology enhances flight stability by countering the effects of wind, turbulence, and other outside forces to help your aircraft fly smoothly and with precision. You’ll feel like you’re piloting an expertly tuned model that performs exactly as you want.

SAFE® Technology
SAFE® (Sensor Assisted Flight Envelope) technology flight modes help pilots avoid over-controlling their models. SAFE uses AS3X to deliver normal flight performance, but with limited bank and pitch angles to prevent the aircraft from getting in extreme attitudes.

Long 230mm 2.4GHz Antenna
The AR631 features an extra-long 230mm 2.4ghz antenna (approximately 9 inches), specifically engineered for use in tight installations. When installing your receiver into an aircraft where there is less then ideal space away from batteries and other devices, a long antenna is key. This allows users to install the receiver in tight spaces and isolate the antenna for optimal reception and link quality. When positioning your antenna, it is best to have it at least 75mm ( approximately 3 inches) away from batteries, electronic speed controls (ESC), ignition systems, and other electronic devices. Use the integrated flight log telemetry to perform a through range test to better evaluate your setup.

Forward Programming
You can configure the AR631 receiver wirelessly, directly from any compatible Spektrum™ transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments.

Smart Telemetry
To enjoy the full benefits of Smart™ technology, use the AR631 receiver with a Smart ESC and telemetry capable Spektrum DSMX® transmitter. The AR631 features fly-by telemetry and will provide vital telemetry data such as current, voltage, temperature and RPM is sent directly to your transmitter. The AR631 is not compatible with Spektrum telemetry sensors. For more information on Smart Technology please visit our Spektrum Smart Technology page.

PLEASE NOTE – These transmitters do not support Forward Programming devices:

• DX6i
• DX6G2 (EU Version)
• DX7
• DX7S
• DX7SE
• DX7G2 (EU Version)
• DX8 (Original Silver Version)
• Non-computer transmitters

Specifications:
Channels: 6
Modulation: DSMX
Band: 2.4GHz
Length: 1.53″ (39 mm)
Width: 0.94″ (24 mm)
Height: 0.55″ (14 mm)
Weight: 0.28oz (8g)
Voltage Range: 3.5 – 9V
Antenna Length: 9″ (229 mm)
